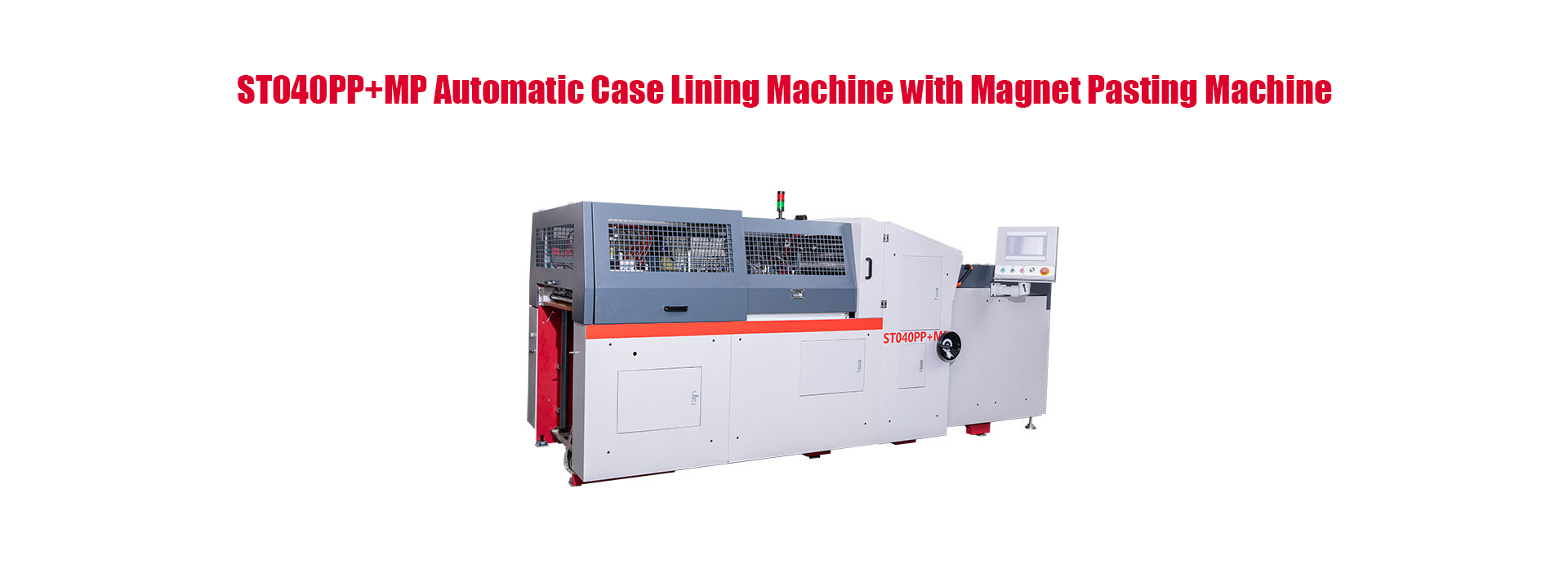

Automatic Case Lining Machine with Magnet Pasting Machine

ST040PP+MP automatic case lining machine applicable for pasting the inside paper for the cigarette box, liquor box, comestic box, electronic box, sweet box..etc as well as the magnet and metal plate at the same time, the stable speed can be 2000pcs/h, for running 2 pieces of cases at one time, the speed can be up to 4000pcs/h, thus ST040PP+MP automatic case lining machine can greatly improving the production speed. The whole machine is driven by the cam, which can be positioned accurately. Compared with the other case lining machines in the market, ST case lining machines are more stable and durable due to the mechanial system..etc. More importantly, ST040PP+MP automatic case lining machine can be applicable for different products such as passport book..etc. The case lining machines can be connected with our case makining machines for making the case and lining and magnet&metal plate pasting on the production line also as per the customers’ requirements to achieve the intelligent production mode.

Equipment Features

Automatic Case Lining Machine with Magnet Pasting Machine lining cam driving system
Lining cam driving system
Can make the machine run stably and position precisely, thus Ensuring the product quality
Automatic Case Lining Machine with Magnet Pasting Machine hardcover suction system
Hardcover suction system
Can avoid the scratch on the hardcover, thus helping to Improve the quality greatly and also run 2 pieces of hard case at one time.
Automatic Case Lining Machine with Magnet Pasting Machine case feeding device
2 piece of case feeding device
The speed can achieve 80pcs of cases at one time, thus improving the production efficiency greatly
Automatic Case Lining Machine with Magnet Pasting Machine gripper lining device
Gripper lining device
Can position more precisely and paste two lining paper at the same time
Automatic Case Lining Machine with Magnet Pasting Machine
Automatic Magnet and Metal Plate Pasting Device
Can paste the magnet and metal plate accurately and save the production process.
Automatic Case Lining Machine with Magnet Pasting Machine brush and creasing device
Brush and creasing device
Can refine the surface of the hardcover greatly And save the next production proces
Automatic Case Lining Machine with Magnet Pasting Machine direction pressing device
Brush and creasing device
Can refine the surface of the hardcover greatly And save the next production proces
Automatic Case Lining Machine with Magnet Pasting Machine spare parts management
Spare parts standard management
Convenient for the after-sales service and improve the maintenance efficiency

Equipment Video

Production Flow Chart

Automatic Case Lining Machine with Magnet Pasting Machine production flow

Equipment Parameters

· Machine Parameter

· Overall size · 3950×2650×1900(mm)
· Weight · 3100 (kg)
· Voltage · 380/220 (v)
· Power · 3.2 (kw)
· Speed · 10~40 (pcs/min)
· Mechanical current · 10(A)
· frequency · 50(HZ)
· Machine color · red and grey



· Technology Parameter

· Max case size · 680×360mm
· Min case size · 150×100mm
· Board thickness · 0.5-5mm
· Paper thickness · 70-200gsm
· Magnet specification · φ 8-20
· Magnet thickness · 4mm

Remark:

1. The Max. and Min. sizes of the cases are subjected to the sizes and quality of the paper.
2. The speed of the machine depends on the sizes of the cases.
3. We don’t provide air compressor.
