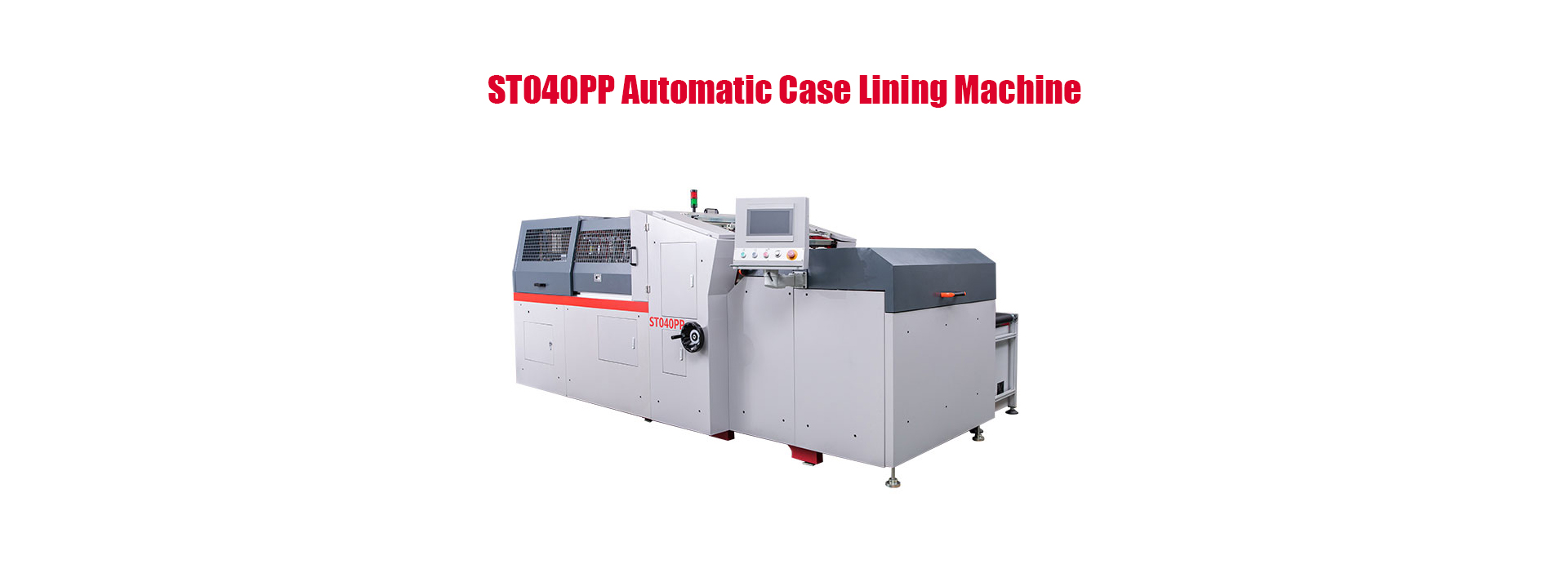

ST040PP Automatic Case Lining Machine

ST040PP automatic case lining machine applicable for pasting the inside lining paper for the wire-o notebook, table calendar, lever arch file, various kinds of packaging box..etc, the stable speed can be 2000pcs/h, for running 2 pieces of cases at one time, the speed can be up to 4000pcs/h, thus it can greatly improve the production speed. ST040PP automatic case lining machine is driven by the cam, which can be positioned accurately. Compared with the other case lining machines in the market, ST040PP automatic case lining machine is more stable and durable due to the mechanical system..etc. More importantly, it can be applicable for different products such as passport book..etc. The case lining machines can be connected with our case makining machines for making the case and lining on the production line also as per the customers’ requirements to achieve the intelligent production mode.

Equipment Features

Automatic Case Lining Machine with Magnet Pasting Machine lining cam driving system
Lining cam driving system
Can make the machine run stably and position precisely, thus Ensuring the product quality
Automatic Case Lining Machine with Magnet Pasting Machine hardcover suction system

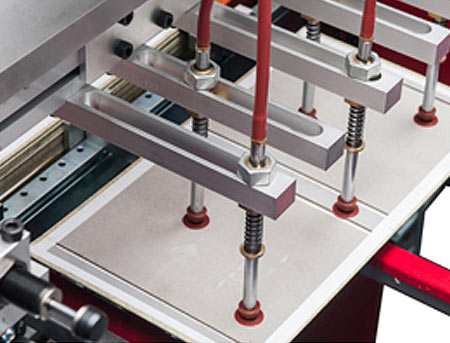

Hardcover suction system
Can avoid the scratch on the hardcover, thus helping to Improve the quality greatly and also run 2 pieces of hard case at one time.
Automatic Case Lining Machine with Magnet Pasting Machine case feeding device
2 piece of case feeding device
The speed can achieve 80pcs of cases at one time, thus improving the production efficiency greatly
Automatic Case Lining Machine with Magnet Pasting Machine gripper lining device
Gripper lining device
Can position more precisely and paste two lining paper at the same time
Automatic Case Lining Machine with Magnet Pasting Machine brush and creasing device
Brush and creasing device
Can refine the surface of the hardcover greatly And save the next production proces
Automatic Case Lining Machine with Magnet Pasting Machine direction pressing device
Brush and creasing device
Can refine the surface of the hardcover greatly And save the next production proces
ST040PP Automatic Case Lining Machine spare parts standard management
Spare parts standard management
Convenient for the after-sales service and improve the maintenance efficiency

Equipment Video

Production Flow Chart

ST040PP Automatic Case Lining Machine production flow

Equipment Parameters

 Machine Parameter

· Overall size · 3400X2650X1900(mm)
· Weight · 3100(kg)
· Voltage · 380/220(v)
· Power · 3.2(kw)
· Speed · 10~40(pcs / min)
· Mechanical current · 10(A)
· frequency · 50(HZ)
· Machine color · red and grey



Technology Parameter

· Max Case size · 680×360(mm)
· Min Case size · 150×100 (mm)
· Cardboard thickness · 0.5~5(mm)
· Paper thickness · 70-200 gsm

Remark:

1. The Max. and Min. sizes of the cases are subjected to the sizes and quality of the paper.
2. The speed of the machine depends on the sizes of the cases.
3. We don’t provide air compressor.

Applications
